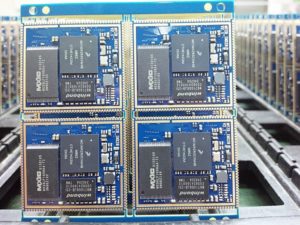

CPU：MX283/7, 454 MHz
Memory：128MB DDR2-400 SDRAM
Storage：128MB NAND Flash，up to 1GB
Power Supply：3V to 5.5V
Size：40mmX35mm
Temperature：-20°C —85°C (Expansion industrial)
-40°.85°C(Industrial) -40°C —85°C (Automotive)

Main Features:

Integrated ARM926EJ-S CPU with 32KB data cache and 16 KB instruction cache
Power Management Units with DC-DC switched converter supporting Li-lon batteries
2x 10/100 Ethernet MAC supporting IEEE 1588 protocols and one 3-port L2 switch
Two FlexCAN2 interfaces
Two instances of Universal Serial Bus (USB) High-Speed integrated PHY
8-Channel ADC configured as12 bits, up to 2 Msps sample rate
Thermal protection temperature sensor
Multiple connection interfaces(UARTs、SSP、SDIO、SPI、I2C、I2S)
Low-cost 54MHz ARM9
Industrial temperature range
Highly integrated stamp hole pin
Size up to 4cmX3.5cm

Instruction of mother board icon)

Icon (interface module) (icon)((interface module)

1	programming key	12	GPIO0
2	reset key	13	GPIO1
3	CAN1	14	ethernet1
4	CAN0	15	ethernet0
5	dial switch	16	SD card
6	debug serial port	17	CODEC interface
7	ADC	18	touch screen interface
8	TTL_COM2	19	two way USB HOST
9	TTL_COM3	20	MINIUSB programming interface
10	TTL_COM0	21	5V power source interface
11	SPI	22	WIFI
